2003 Yearly SABER Operations Overview

Quick Contents

2003 Data Collection 2003 Operational Changes 2003 Trends 2003 Coverage 2003 Commanding 2003 Limit Violations

Appendices

• 2003 Data Collection

SABER became operational on January 8, 2002, and remained in Data Collection (DC) mode during 2003 except for the periods noted below.


• January 22-24 - 24 Lunar Observations
• 22 Jan 19:15 - First Moonlook
• 24 Jan 08:50 - Last Moonlook
• January 27-30 - Cooler Power Cycle, coinciding with TIMED/TIDI roll maneuver
• 27 Jan 22:30 - Command sent to turn off the adaptive scan and cryo-cooler.
• 30 Jan 02:40 - Command sent to turn the cryco-cooler back on and set the temperature to 74K.
• 30 Jan 15:10 - Command sent to re-enable adaptive scan and restart nominal DC
• March 22-25 - 24 Lunar Observations
• 22 Mar 20:40 - First Moonlook
• 25 Mar 06:45 - Last Moonlook
• April 1-8 - Cooler Power Cycle, coinciding with TIMED/TIDI roll maneuver
• 1 Apr 10:22 - Command sent to turn off the adaptive scan and cryo-cooler.
• 7 Apr 15:28 - Command sent to turn the cryco-cooler back on and set the temperature to 74K.
• 8 Apr 02:32 - Command sent to re-enable adaptive scan and restart nominal DC
• April 16-18 - 20 Lunar Observations
• 16 Apr 05:26 - First Moonlook
• 18 Apr 03:05 - Last Moonlook
• July 17-19 - Cooler Power Cycle
• 17 July 17:18 - Command sent to turn off the adaptive scan and cryo-cooler.
• 18 July 17:33 - Command sent to turn the cryco-cooler back on and set the temperature to 74K.
• 19 July 16:13 - Command sent to re-enable adaptive scan and restart nominal DC
• August 12-14 - 20 Lunar Observations
• 12 Aug 00:32 - First Moonlook
• 14 Aug 19:46 - Last Moonlook
• October 11-14 - 9 Lunar Observations
• 11 Oct 00:40 - First Moonlook
• 14 Oct 02:36 - Last Moonlook
• November 17-19 - Cooler Power Cycle
• 17 Nov 15:10 - Command sent to turn off the adaptive scan and cryo-cooler.
• 18 Nov 16:53 - Command sent to turn the cryco-cooler back on and set the temperature to 74K.
• 19 Nov 15:45 - Command sent to re-enable adaptive scan and restart nominal DC

Click here for a list of each command sent in 2003 along with a short description of that command's purpose.

• 2003 Operational Changes

Operational changes made to SABER in 2003 are noted below:

• No operational changes were made to SABER during 2003



• 2003 Trends

Trended parameters are divided into three sections:

• Housekeeping - plotted parameters directly related to health and monitoring
• Responsivity - responsivity levels plotted for channels 1-10
• Scan Mirror - plot of scan mirror behavior for 2003



• Coverage

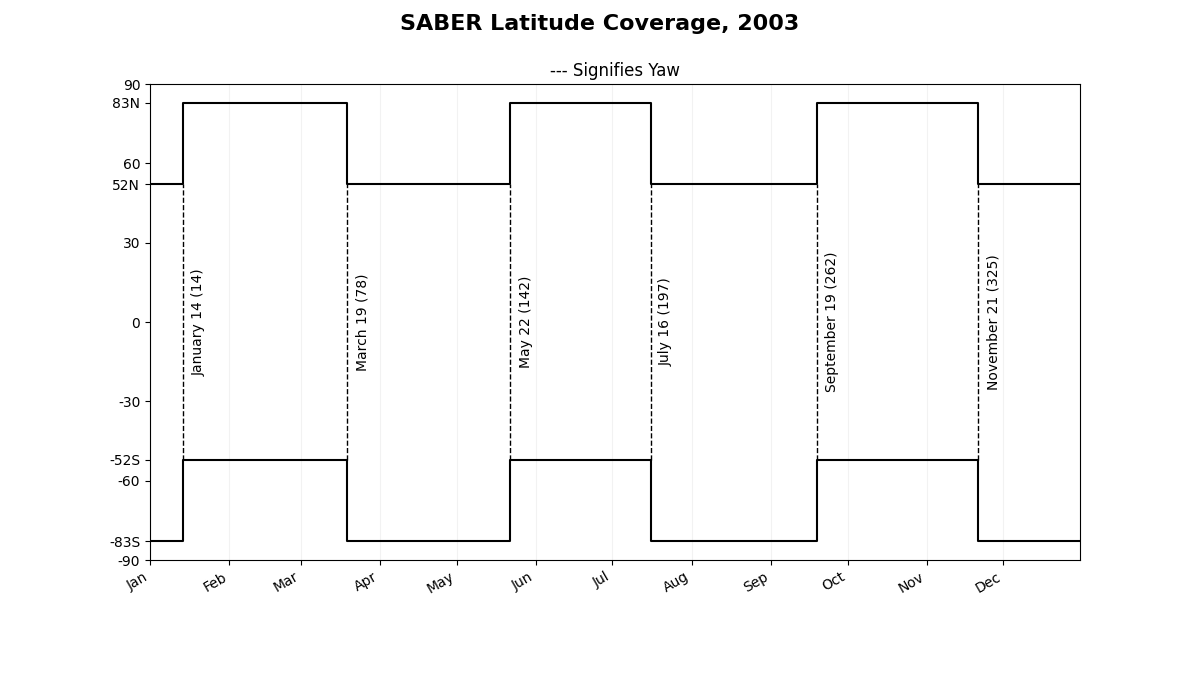

The plot below shows the dates of TIMED Yaws, and the latitudes between which SABER observed during those Yaws






---




The small picture below shows the orientation of SABER on TIMED, and the latitudes observed in +X and -X travel






• 2003 Commanding

The breakdown of commands sent to SABER in 2003 is as follows:



Command Type	Number of commands
Diagnostics or Testing	22
Memory Dump	8
Power-Up	0
Health and Maintenance	16
Operational Change	0
Total:	46



For a list of each command sent in 2003 along with a short description of that command's purpose, click here.

• 2003 Limit Violations

During the year of 2003, there were no reported Red limit violations.
