2014 Yearly SABER Operations Overview

Quick Contents

2014 Data Collection 2014 Operational Changes 2014 Trends 2014 Coverage 2014 Commanding 2014 Limit Violations

Appendices

• 2014 Data Collection

SABER became operational on January 8, 2002, and remained in Data Collection (DC) mode during 2014 except for the periods noted below.


• March 17 - Cooler Power Cycle
• 17 Mar 15:12 - Command sent to turn off the adaptive scan and cryo-cooler.
• 18 Mar 13:49 - Command sent to turn the cryco-cooler back on and set the temperature to 74K.
• 19 Mar 14:03 - Command sent to re-enable adaptive scan and restart nominal DC



Click here for a list of each command sent in 2014 along with a short description of that command's purpose.

• 2014 Operational Changes

Operational changes made to SABER in 2014 are noted below:

• No operational changes were made to SABER during 2014



• 2014 Trends

Trended parameters are divided into three sections:

• Housekeeping - plotted parameters directly related to health and monitoring
• Responsivity - responsivity levels plotted for channels 1-10
• Scan Mirror - plot of scan mirror behavior for 2014



• Coverage

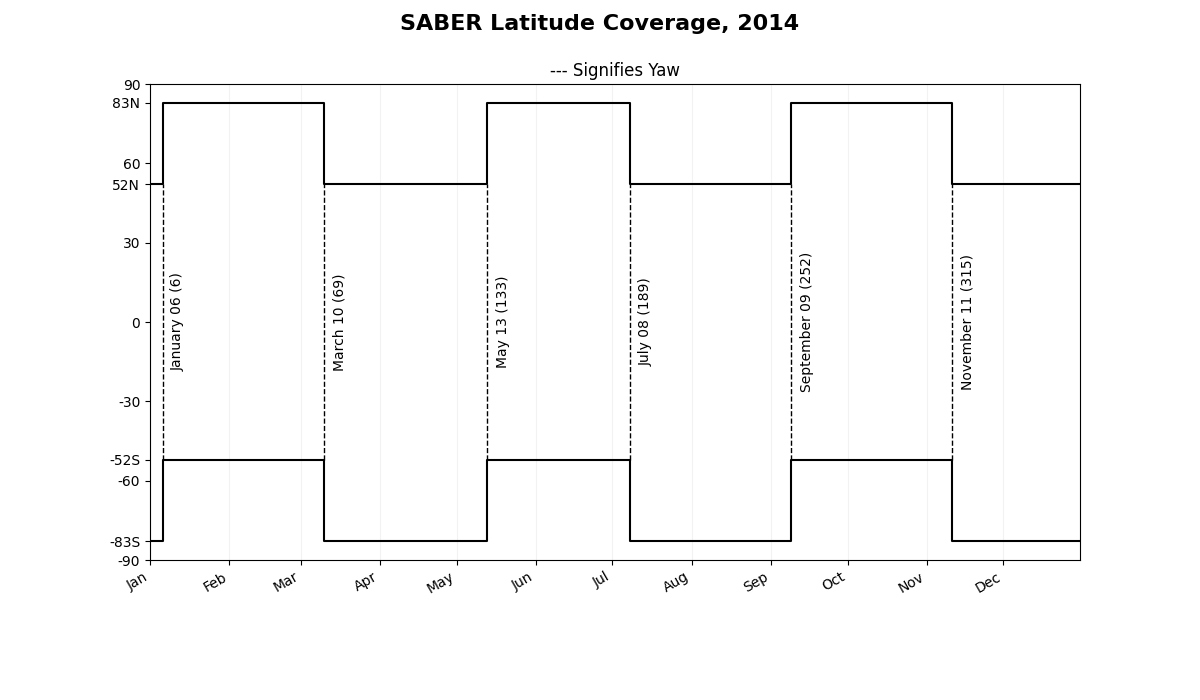

The plot below shows the dates of TIMED Yaws, and the latitudes between which SABER observed during those Yaws






---




The small picture below shows the orientation of SABER on TIMED, and the latitudes observed in +X and -X travel






• 2014 Commanding

The breakdown of commands sent to SABER in 2014 is as follows:



Command Type	Number of commands
Diagnostics or Testing	0
Memory Dump	0
Power-Up	0
Health and Maintenance	3
Operational Change	0
Total:	3



For a list of each command sent in 2014 along with a short description of that command's purpose, click here.

• 2014 Limit Violations

During the year of 2014, there were no reported Red limit violations.
