2015 Yearly SABER Operations Overview

Quick Contents

2015 Data Collection 2015 Operational Changes 2015 Trends 2015 Coverage 2015 Commanding 2015 Limit Violations

Appendices

• 2015 Data Collection

SABER became operational on January 8, 2002, and remained in Data Collection (DC) mode during 2015 except for the periods noted below.


• No time periods out of DC mode during 2015



Click here for a list of each command sent in 2015 along with a short description of that command's purpose.

• 2015 Operational Changes

Operational changes made to SABER in 2015 are noted below:

• No operational changes were made to SABER during 2015



• 2015 Trends

Trended parameters are divided into three sections:

• Housekeeping - plotted parameters directly related to health and monitoring
• Responsivity - responsivity levels plotted for channels 1-10
• Scan Mirror - plot of scan mirror behavior for 2015



• Coverage

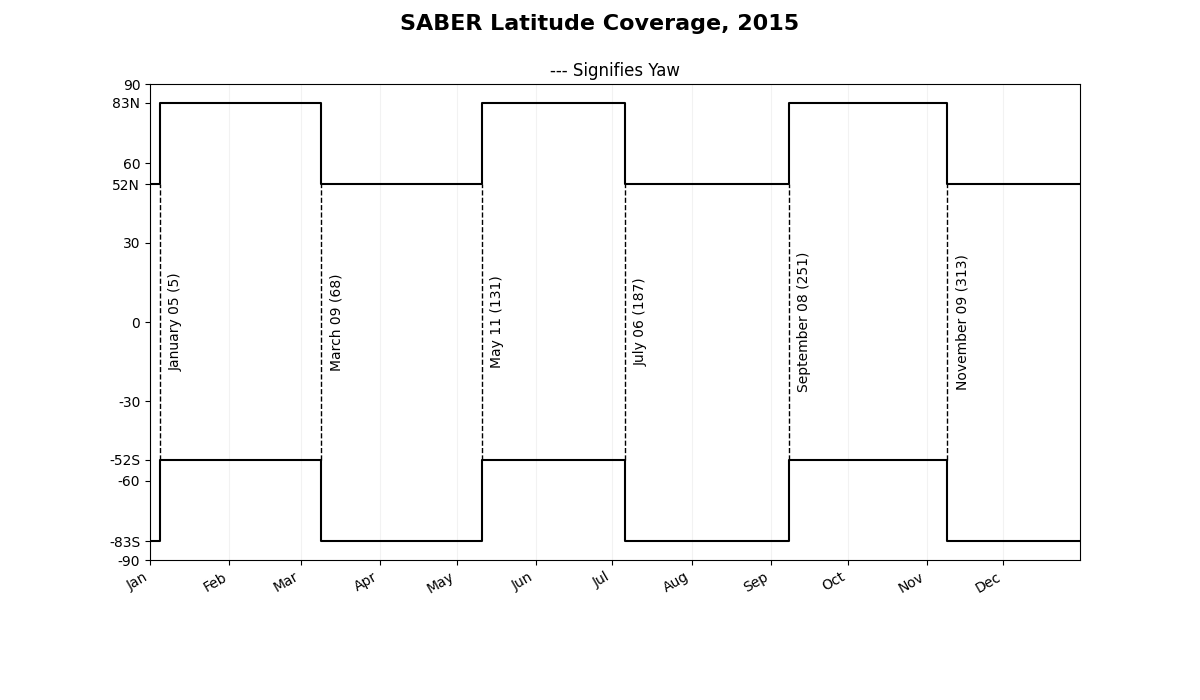

The plot below shows the dates of TIMED Yaws, and the latitudes between which SABER observed during those Yaws






---




The small picture below shows the orientation of SABER on TIMED, and the latitudes observed in +X and -X travel






• 2015 Commanding

The breakdown of commands sent to SABER in 2015 is as follows:



Command Type	Number of commands



For a list of each command sent in 2015 along with a short description of that command's purpose, click here.

• 2015 Limit Violations

During the year of 2015, there were no reported Red limit violations.
