2017 Yearly SABER Operations Overview

Quick Contents

2017 Data Collection 2017 Operational Changes 2017 Trends 2017 Coverage 2017 Commanding 2017 Limit Violations

Appendices

• 2017 Data Collection

SABER became operational on January 8, 2002, and remained in Data Collection (DC) mode during 2017 except for the periods noted below.


• May 30 - Cooler Power Cycle
• 30 May 12:51 - Command sent to turn off the adaptive scan and cryo-cooler.
• 31 May 11:27 - Command sent to turn the cryo-cooler back on and set the temperature to 74K.
• 01 Jun 11:39 - Command sent to re-enable adaptive scan and restart nominal DC.



Click here for a list of each command sent in 2017 along with a short description of that command's purpose.

• 2017 Operational Changes

Operational changes made to SABER in 2017 are noted below:

• No operational changes were made to SABER during 2017



• 2017 Trends

Trended parameters are divided into three sections:

• Housekeeping - plotted parameters directly related to health and monitoring
• Responsivity - responsivity levels plotted for channels 1-10
• Scan Mirror - plot of scan mirror behavior for 2017



• Coverage

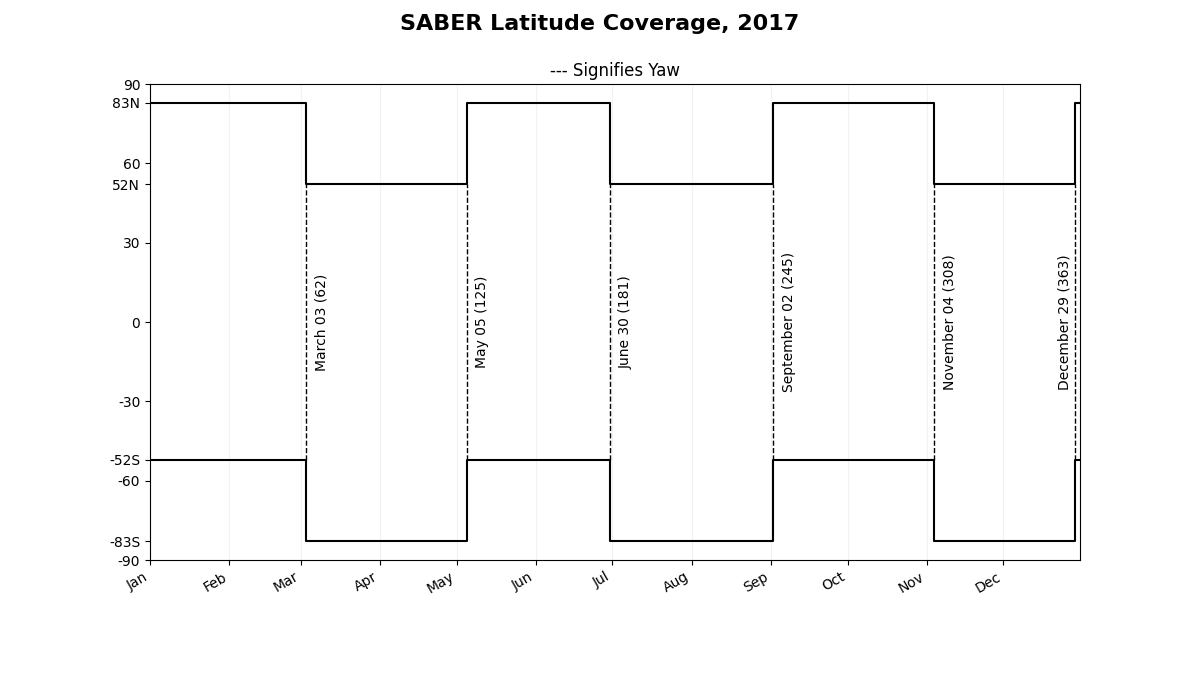

The plot below shows the dates of TIMED Yaws, and the latitudes between which SABER observed during those Yaws






---




The small picture below shows the orientation of SABER on TIMED, and the latitudes observed in +X and -X travel






• 2017 Commanding

The breakdown of commands sent to SABER in 2017 is as follows:



Command Type	Number of commands
Diagnostics or Testing	0
Memory Dump	0
Power-Up	0
Health and Maintenance	0
Operational Change	0
Total:	0



For a list of each command sent in 2017 along with a short description of that command's purpose, click here.

• 2017 Limit Violations

During the year of 2017, there were no reported Red limit violations.
