2023 Data Collection
SABER became operational on January 8, 2002, and remained in Data
Collection (DC) mode during 2023 except for the periods noted below.
Click here for a list of each command sent in 2023 along with a short description of that command's purpose.
2023 Operational Changes
Operational changes made to SABER in 2023 are noted below:
- No operational changes were made to SABER during 2023
2023 Trends
Trended parameters are divided into three sections:
- Housekeeping - plotted parameters directly related to health and monitoring
- Responsivity - responsivity levels plotted for channels 1-10

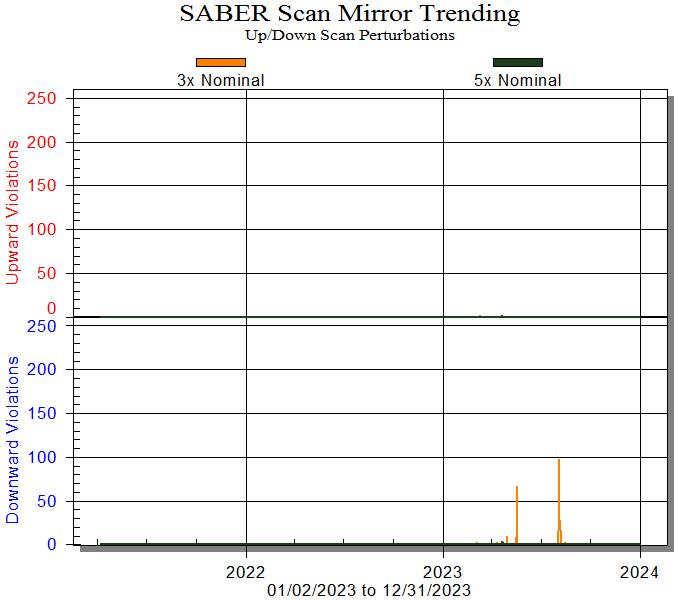

- Scan Mirror - plot of scan mirror behavior for 2023
Coverage

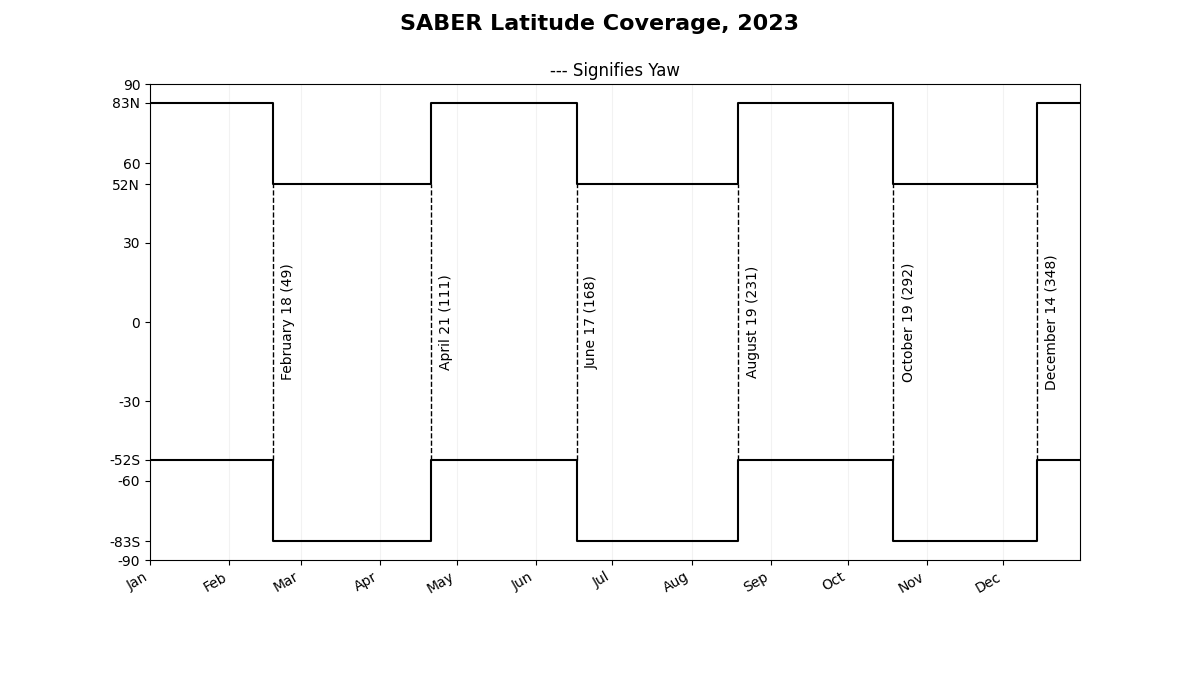

The plot below shows the dates of TIMED Yaws, and the latitudes between which SABER observed during those Yaws
The small picture below shows the orientation of SABER on TIMED, and the latitudes observed in +X and -X travel
2023 Commanding
The breakdown of commands sent to SABER in 2023 is as follows:
| Command Type | Number of commands |
|---|---|
| Diagnostics or Testing | 0 |
| Memory Dump | 0 |
| Power-Up | 0 |
| Health and Maintenance | 0 |
| Operational Change | 0 |
| Total: | 0 |
For a list of each command sent in 2023 along with a short description of that command's purpose, click here.
2023 Limit Violations
During the year of 2023, there were no reported Red limit violations.
